CBL Marine Explosion-proof Centrifugal fan

1.General
CBL series marine or explosion-proof Centrifugal fans (simply the explosion-proof fans) are designed and manufactured according to GB11799-89《Marine explosion-proof centrifugal fans》 GB3836.1-2000《Electrical apparatus for explosive atmosphere》, GB3836.2-2000《Electrical apparatus for explosive atmospheres, and explosion-proof electrical equipment“d” 》
This series fans have been examined and proved up to standard by the Explosion-proof Inspection Authority of the PRC and have got the certificate of inspection. They have also been examined by the register of shipping of RC and have got the certificate.

2.Features
Explosion-proof, safe and reliable in operation. Small size, light weight, and low noise, well anticorrosive , strongly capable of resisting swing, vibration and shocking.

3.Structure
There are two structural types:
type I (direct-coupling type), and type II (separate cabins type). The construction is non-sparking.

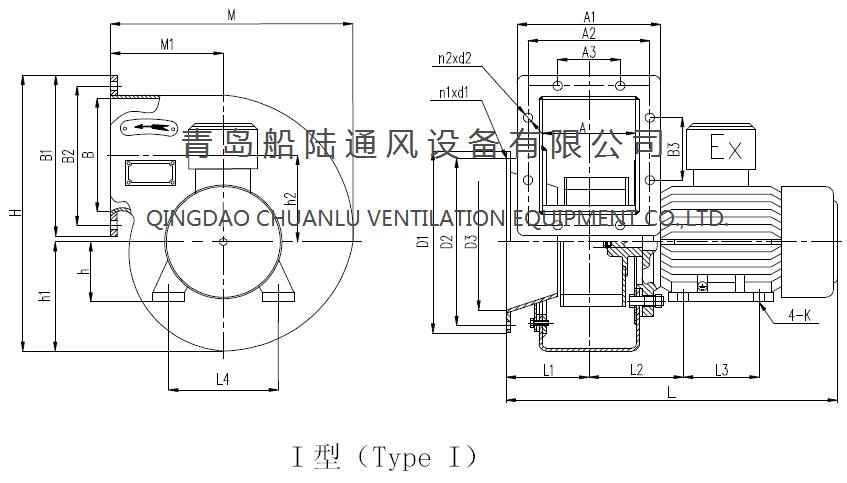

The structure of types I is a motor direct coupling one, the impeller is mounted directly on the motor shat , and the casing is fixed on the flange of the explosion-proof motor.

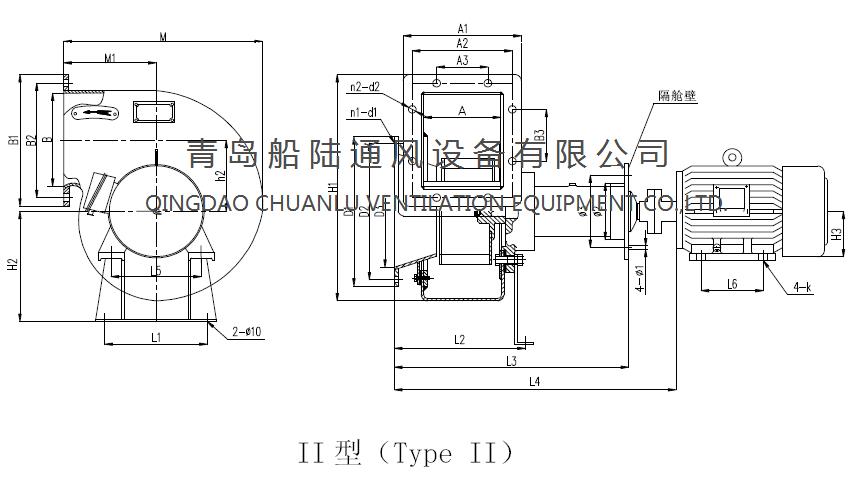

The type II is a separate structure ,the fan and the motor are put into different cabins, with a driving device, flexible couplings, and the driving device consists of bearings, bearing-box, shaft, brass rings, stuffing box. It can be oiled and measured the temperature .One side is fixed on the fan, and the other side will be mounted on the bulkhead.
The fan may be made into a horizontal or vertical , single-stage, single-drawing and airtight structure by the customer's requirements.

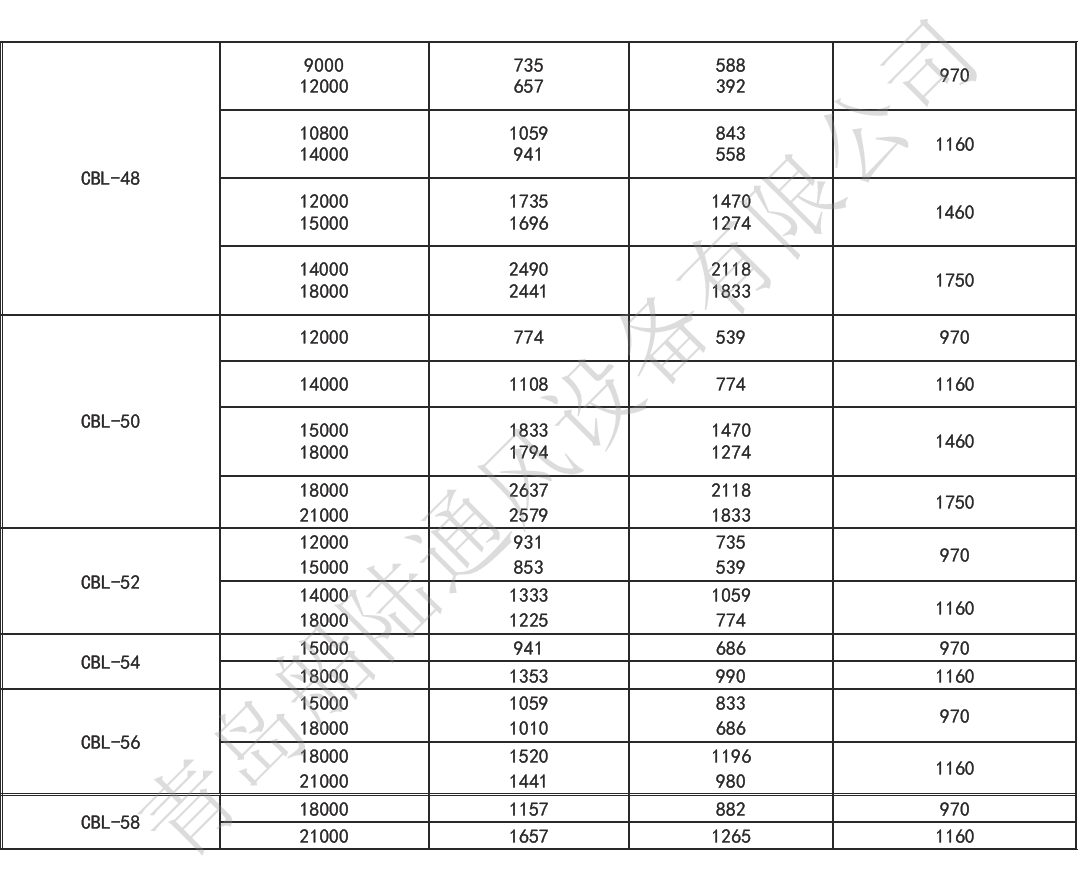

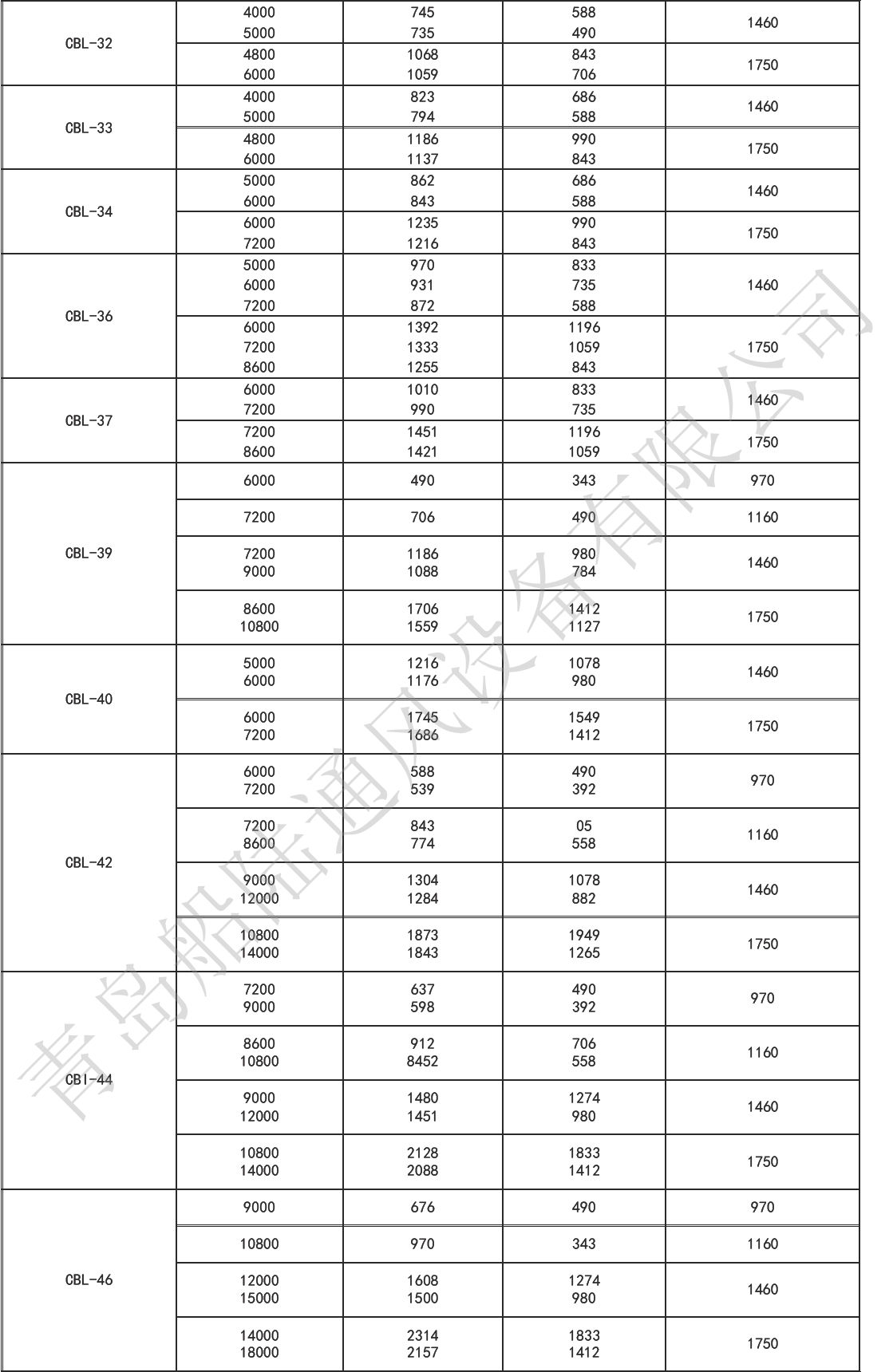

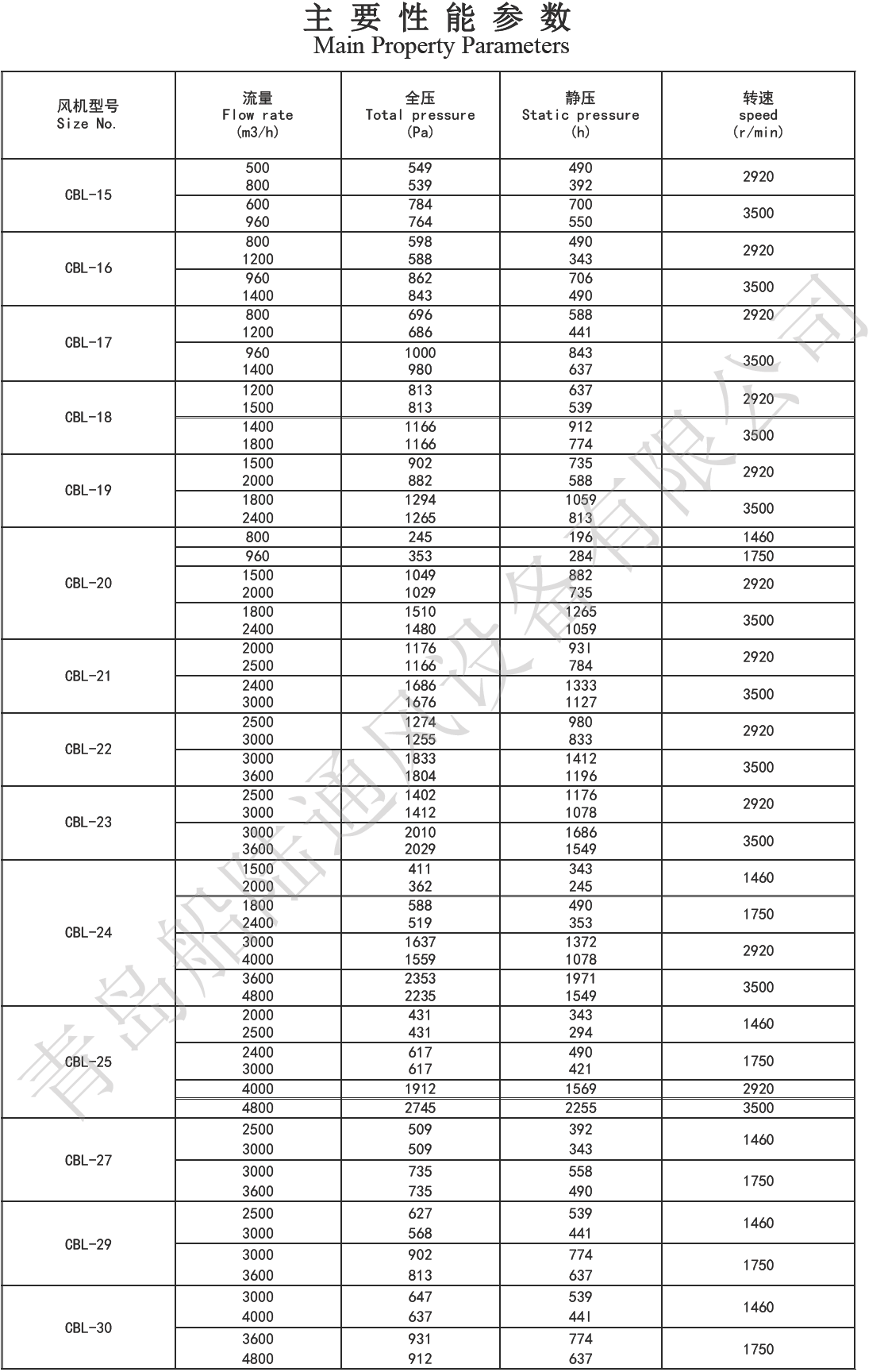

4.Technical data list





REMARK:The technical data is only used for reference,please contact us and get detailed specifications and offer.
We could produce the marine axial fan according to customer's detailed requirement,welcome to contact us!
