CGDL-36-4 marine high-efficiency, low-noise centrifugal fan (simply the fans) is new-type & energy-save, low-noise marine products. By the special design and process, the fans are characterized with high-efficiency (>80%),low-noise, no overload, stable



Details

CGDL-36-4 Marine High Effciency Low-noise Centrifugal Blow Fan

1、General

CGDL-36-4 marine high-efficiency, low-noise centrifugal blow fan (simply the fans) is new-type & energy-save, low-noise marine products. By the special design and process, the fans are characterized with high-efficiency (>80%),low-noise, no overload, stable running and meeting the ventilating and exchanging on ships. They are also applicable in other places that suit.

2、 Features
CGDL-36-4 marine high-efficiency, low-noise centrifugal blow fan are adopted with designed specially aerofoil blade and inlet. The dimension and line of casing are designed specially according to characteristic speeds. The impeller is processed specially so that air flows perfectly and the fans have the advantages of high-efficiency and low-noise. When power gets to large flow, it gets down oppositely. Therefore, the motor can not be damaged because of overload.
In the course of designing & manufacturing, we had thought fully of the marine special conditions, the impellers are strictly made by dynamic balance adjustment & over speed test. Therefore, the fans also have the features of good-corrosive resistance, resistance to swing, resistance to shock and vibration, stable turning, safety & reliability, etc.

3、 Structure
CGDL-36-4 marine high-efficiency, low-noise centrifugal blow fan are in horizontal pattern with direct coupling for the motor. However it can also be constructed into a vertical pattern.
CGDL-36-4 marine high-efficiency, low-noise centrifugal blow fan impellers are made by aluminum alloy and blades are like aerofoil. They are adjusted strictly by dynamic balance, so that they have good air dynamic performance. The casing and inlet are made by common steel and adopted with corrosion prevention of galvanization. When the machine number is equal to or more than40, the fans add to frame.
The outlet directions of No.40~80 of the fans which exist between 0°and 225°, change in 22.5°.

4、Model explanation
例:CGDL-36-4
C: marine or navy
G: high efficiency
D: low noise
L: centrifugal fan
36: impeller diameter is 36cm
4: 4 poles motor

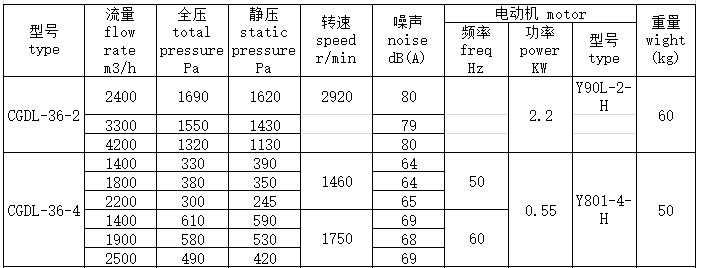

5.Property parameter

6.Outline dinmension


7.Operation Conditions

Medium temperature: -25 ~ +50

Max relative humidity: 95%

Periodical swing: ±22.5°

Continued transversal incline: ±1

Continued longitudinal incline: ±10°

Vibration: existent

Impact:  existent




REMARK:The technical data is only used for reference,please contact us and get detailed specifications and offer.
We could produce the marine axial fan according to customer's detailed requirement,welcome to contact us!
